PEL has developed a family of single & dual Axis positioners for precise positioning of radio antenna, electro-optic surveillance camera, electronic attack or search lighting. PEL positioners can be guided manually, semi-automatically or fully automatically using GPS/ GNSS, RF signal strength and/or COM interface with a C2 system.
0
+
Type of Pedestals Developed
0
+
Years of Legacy
10
0
+
Production Capacity
Per Month
Per Month
Applications
Radio
Communication
C-UAS
SIGINT
OUR USPs
Designed for MIL STDs
Rugged, Compact and Low Weight Construction
Built-in Controller
Provides Smooth and
Precise Motion at All Speeds
Auto Tracking Via Special Control Algorithms
High Degree of Customizations Available

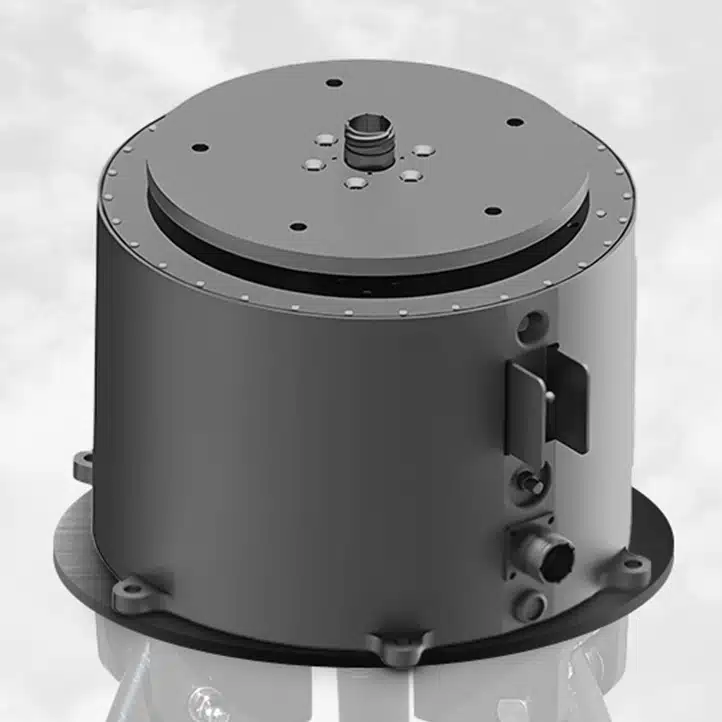

Single Axis Positioner
- Supports fixed and deployable (on-the-quick-halt) use cases
- Compact, light-weight and MIL-STD design
- Continuous azimuth movement via slip ring
- Capable of sector scan and tracking
- High torque to self-weight ratio
- Easy to integrate with external C2 systems
- Control via RS232/422 or ethernet

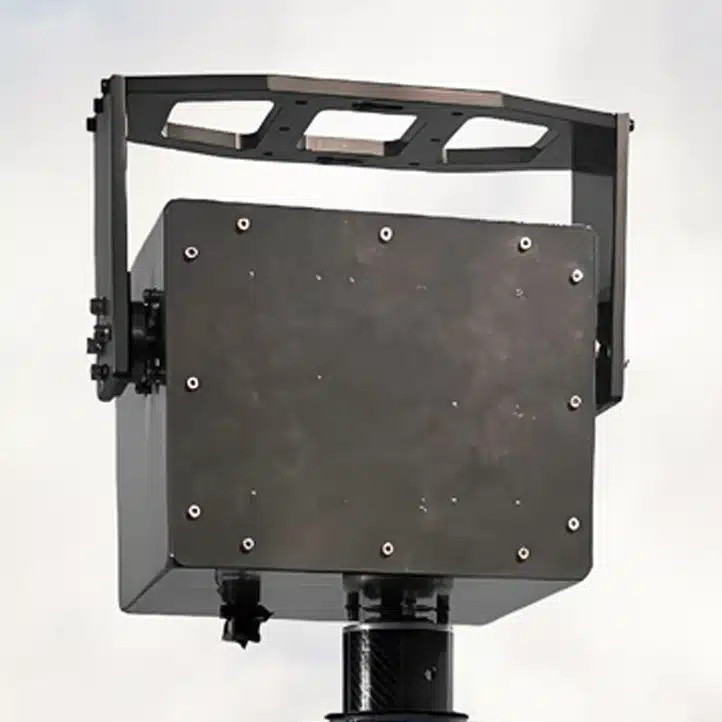

Dual Axis Positioners
- Supports fixed and deployable (on-the-quick-halt) use cases
- High performance and compact design
- Control via RS232/422 or ethernet
- Pan: +/- 180° or 360° via slip ring
- Tilt: up to +/- 90°
- Easy to integrate with external C2 systems
- GNSS Integration (optional)
OUR USPs
Designed for MIL STDs
Self locking Feature Prevents Backlash
No Special Tools Required for Mast Installation
Operates Manually in Azimuth and Elevation Via Ropes

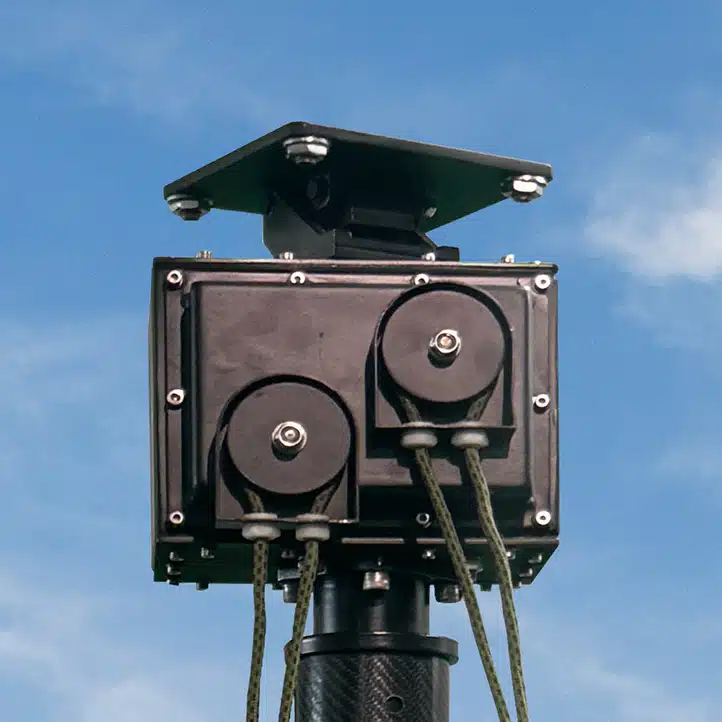

Manual Rotator Tilter (MRT)
- Ideal for directional antenna systems or electro-optic systems
- Provides ± 180˚ azimuth rotation and ± 10˚ elevation
- Operates with rope and pulley arrangement with auto-locking feature
- Supports operations in up to 80 kmph wind speeds
- No special tools required for MRT installation on PEL masts
