PEL has a family of Tripods made from high strength aluminum alloy, FRP and carbon composites. These tripods are specially designed for quick deployment flexibility & stability for various payloads such as Radars, Electro-optic sensors, electronic and kinetic attacks. They can be deployed on Uneven ground while maintaining the payload horizontally to the ground.
Designed as per MIL STD 810.
Radio
Communication
Radar
Electro-Optics
Radio Communication
Anti-Drone
Radar
Electro-Optics
RF Monitoring
OUR USPs
Designed and
Qualified for MIL STD
Man Portable
Quick Deployment
Maintenance Free
0
+
Types of Tripods
developed
developed
0
+
years of legacy
0
+
Production Capacity
Per Month
Per Month

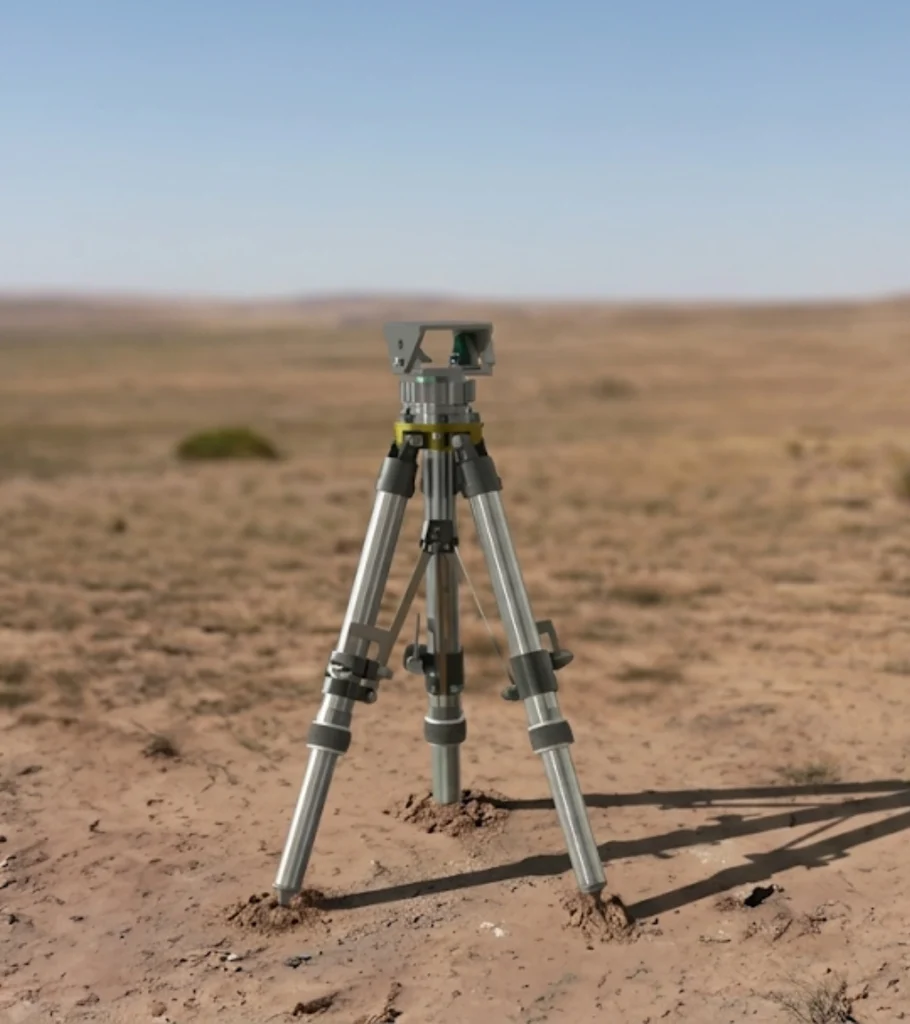

Ultra Light Duty Tripod
- Very Light in weight ~ 5 Kg
- Man portable packed in Soft Carry Case
- Easy to deploy
- Hard anodized tubular construction
- Erected height 1 to 3 Mtr
- Adjustable legs for deployment on uneven ground
- Suitable for mounting Payload up to 5 Kg
- Strong Tubular construction

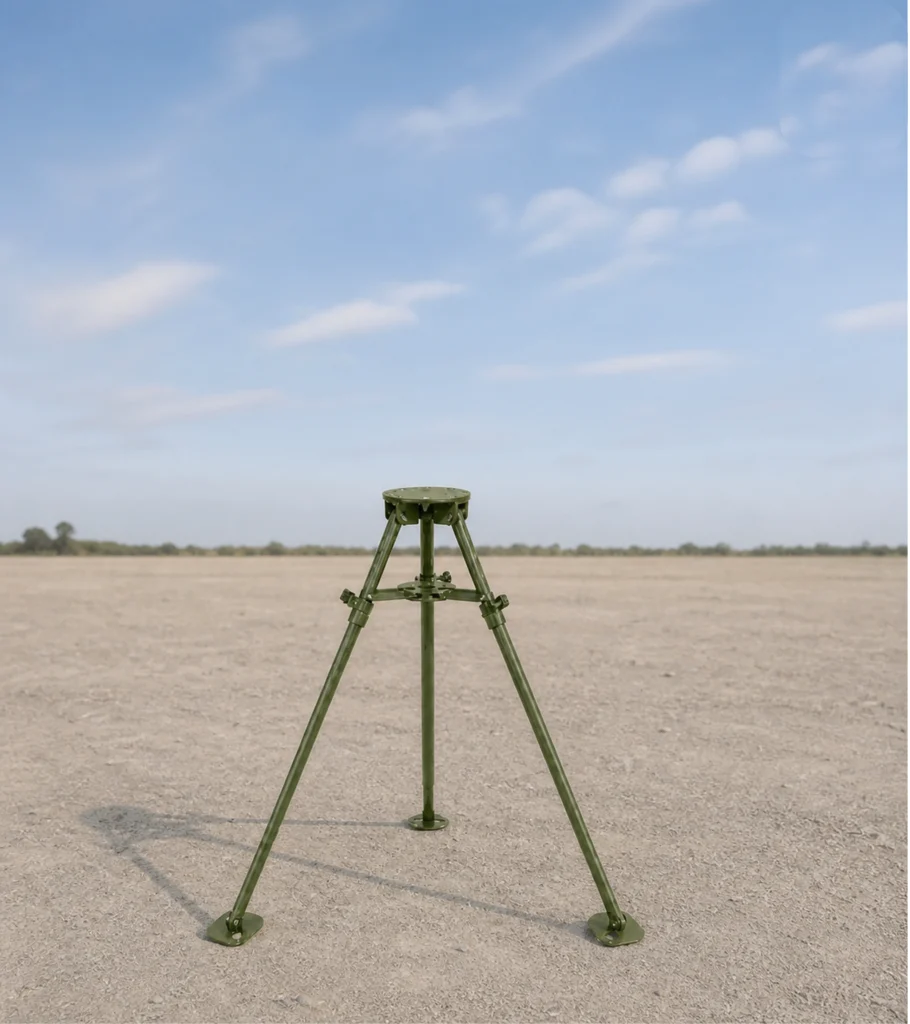

Medium Duty Tripod
- Light-weight ~ 10 Kg
- Man portable packed in Soft Carry Case
- Easy to deploy
- Hard anodized tubular construction
- Adjustable legs for deployment on uneven ground
- Suitable for mounting Payloads upto 100 kg
- Min Height 1.0 Mtr
- Max Height 1.5 Mtr
- Max Spread 2.420 Mtr

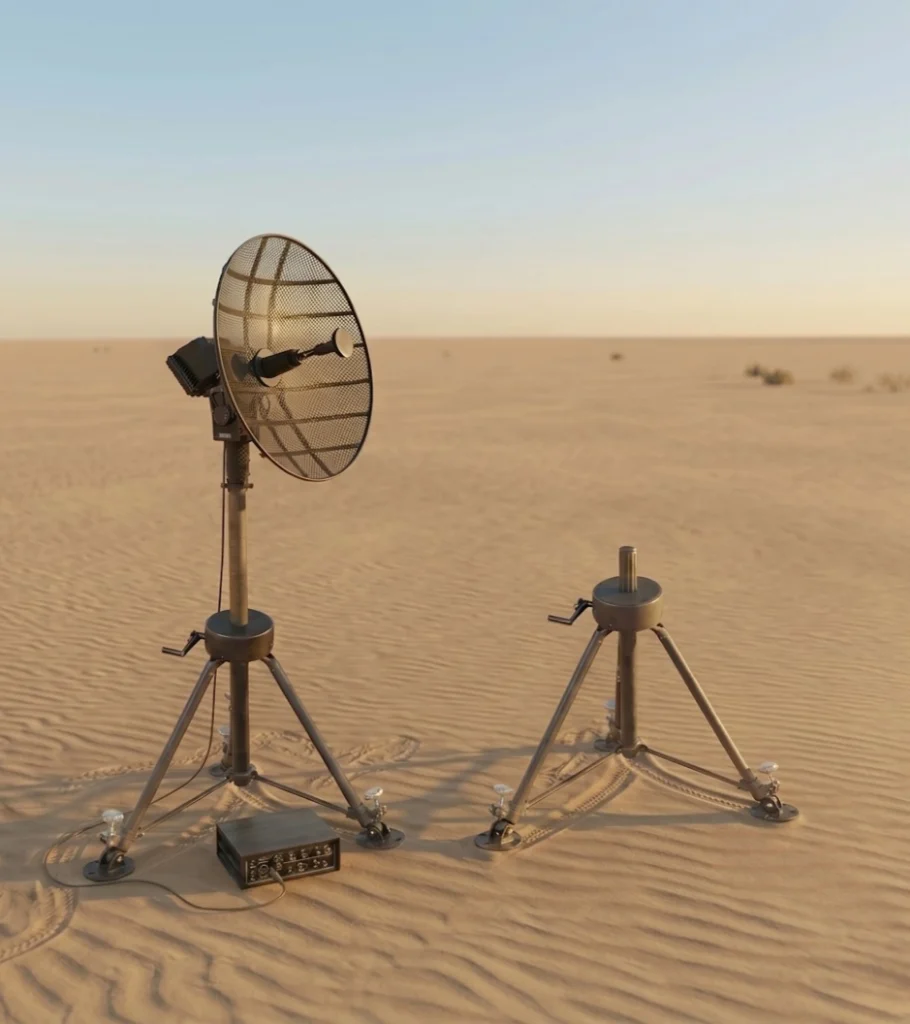

Tripod with Elevator
- Tripod weight ~ 18 Kg
- High Torsional rigidity
- Easy to deploy
- Hard anodized tubular construction
- Man portable packed in Soft Carry case
- Adjustable legs for deployment on uneven ground
- Suitable for mounting Payload Ranging up to 100 Kg
- Optional Rack and Pinion Mechanism (Fine Adjustment up to 18”)
- Min Height 0.85 Mtr
- Max Height 1.8 Mtr
- Max Leg Spread 2.05 Mtr

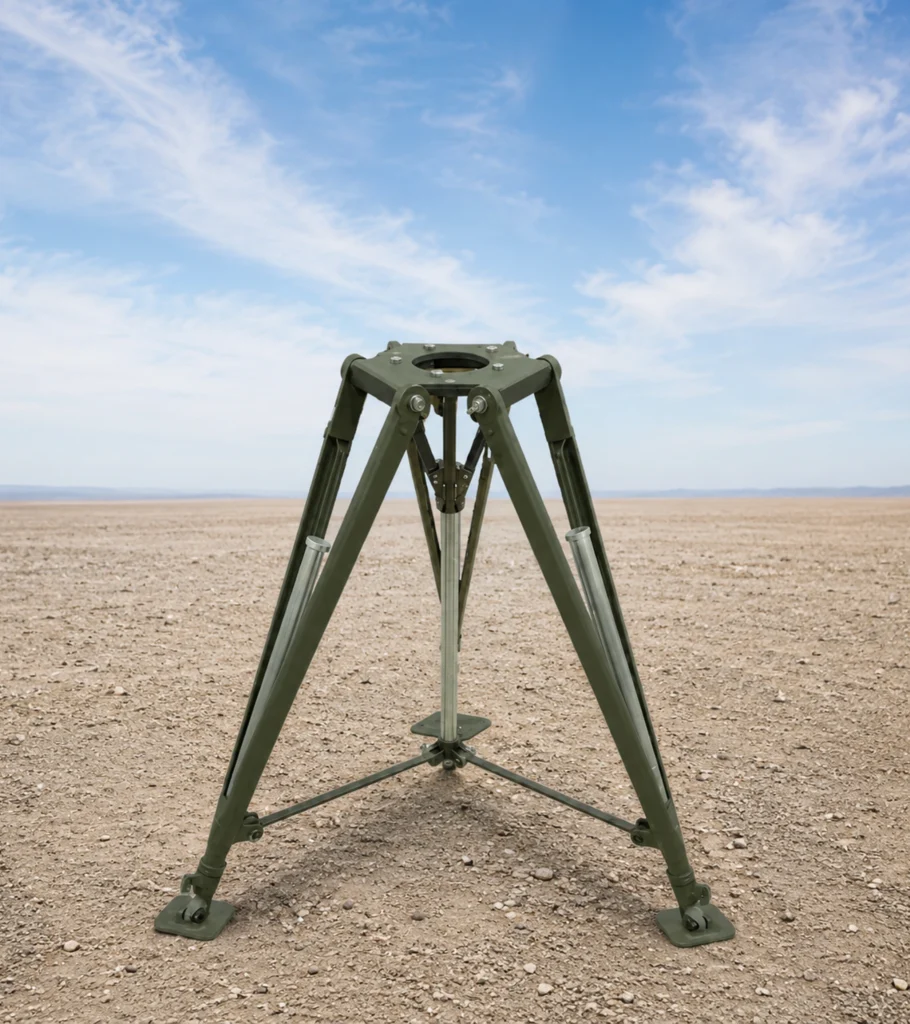

Heavy Duty Tripod
- Tripod weight ~ 25 Kg
- High Torsional rigidity
- Hard anodized tubular construction
- Option for adjustable height for payload deployment
- Man portable packed in Soft Carry case
- Quick deployable
- Adjustable legs for height deployment on uneven ground
- Suitable for mounting Payload Ranging from 100 Kg to 300 Kg
- Strong Tubular Construction
- Min Height 1.1 Mtr
- Max Height 1.5 Mtr
- Max leg Spread Mtr 2.350 Mtr
