PEL has a family of Medium Duty Tripod made from high strength aluminium alloy, FRP and carbon composites. These tripods are specially designed for quick deployment flexibility & stability for various payloads such as Radars, Electro-optic sensors, electronic and kinetic attacks. They can be deployed on Uneven ground while maintaining the payload horizontally to the ground.
Designed as per MIL STD 810.
Radio
Communication
Radar
Electro-Optics
Radio Communication
Anti-Drone
Radar
Electro-Optics
RF Monitoring
OUR USPs
Designed and
Qualified for MIL STD
Man Portable
Quick Deployment
Maintenance Free
0
+
Types of Tripods
developed
developed
0
+
years of legacy
0
+
Production Capacity
Per Month
Per Month

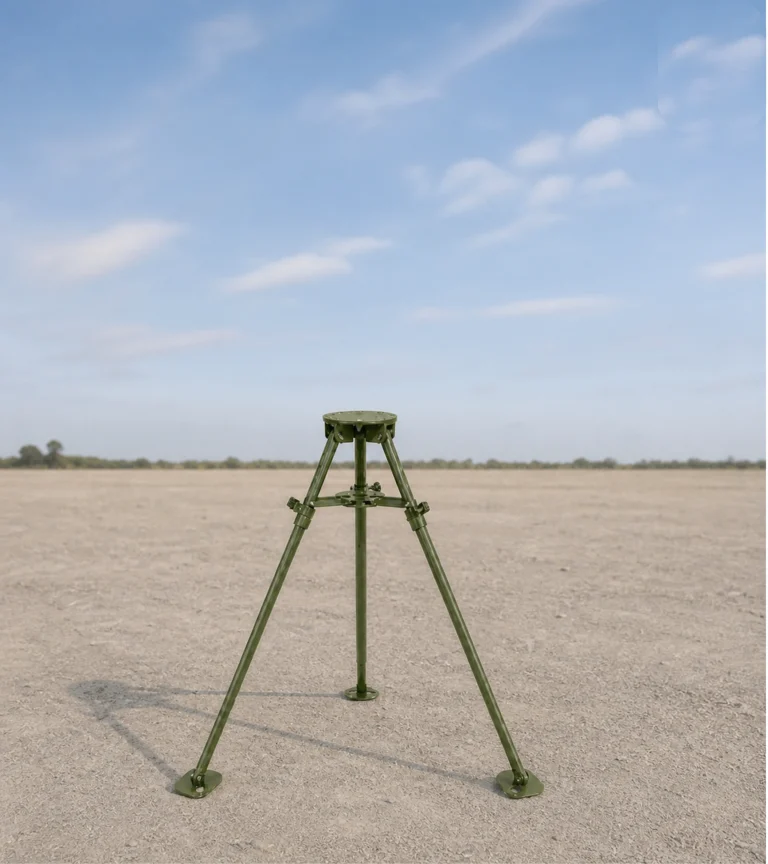

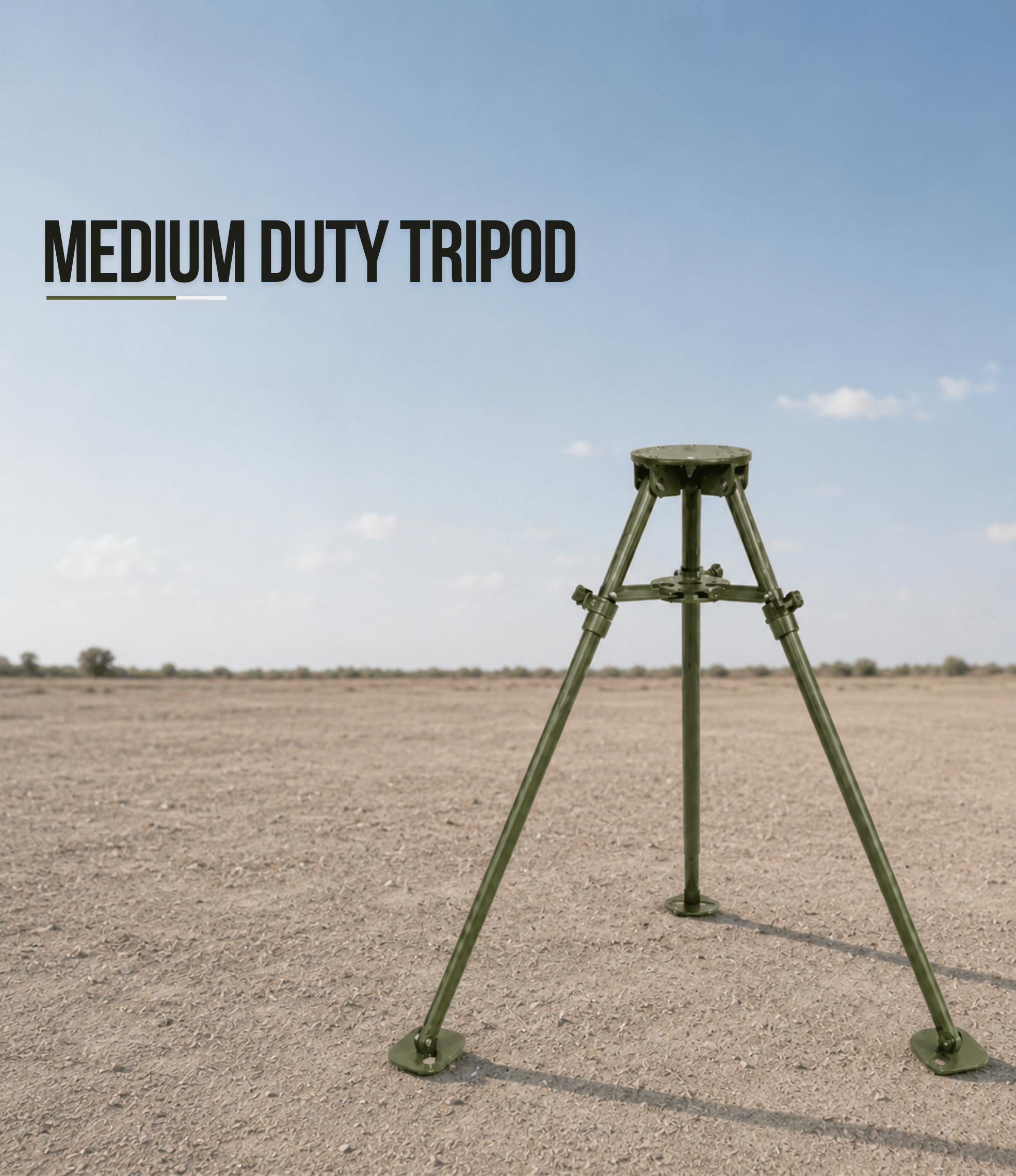

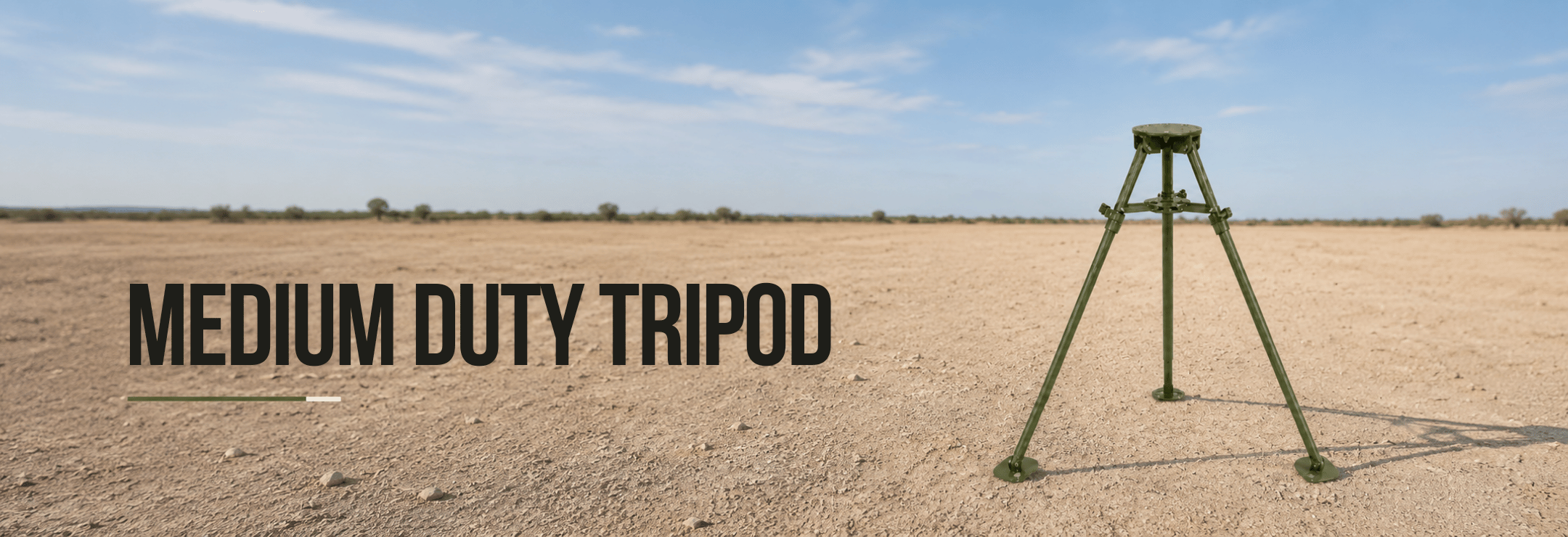

Medium Duty Tripod
- Light-weight ~ 10 Kg
- Man portable packed in Soft Carry Case
- Easy to deploy
- Hard anodized tubular construction
- Adjustable legs for deployment on uneven ground
- Suitable for mounting Payloads upto 100 kg
- Min Height 1.0 Mtr
- Max Height 1.5 Mtr
- Max Spread 2.420 Mtr
Tripod with Elevator
- Tripod weight ~ 18 Kg
- High Torsional rigidity
- Easy to deploy
- Hard anodized tubular construction
- Man portable packed in Soft Carry case
- Adjustable legs for deployment on uneven ground
- Suitable for mounting Payload Ranging up to 100 Kg
- Optional Rack and Pinion Mechanism (Fine Adjustment up to 18”)
- Min Height 0.85 Mtr
- Max Height 1.8 Mtr
- Max Leg Spread 2.05 Mtr
Accessories
Optional Accessory
