PEL has developed a family of single & dual Axis positioners for precise positioning of radio antenna, electro-optic surveillance camera, electronic attack or search lighting. PEL positioners can be guided manually, semi-automatically or fully automatically using GPS/ GNSS, RF signal strength and/or COM interface with a C2 system.
Lighting
Radio
Communication
Electro-Optics
Anti-Drone
Search Lighting
Radio Communication
Electro-Optics
Anti-Drone
OUR USPs
Designed and
Qualified for MIL STD
High Pointing Accuracy
Slew to Cue
RSSI Based Alignment
0
+
Type of Pedestals Developed
0
+
years of legacy
10
0
+
Production Capacity
per month
per month

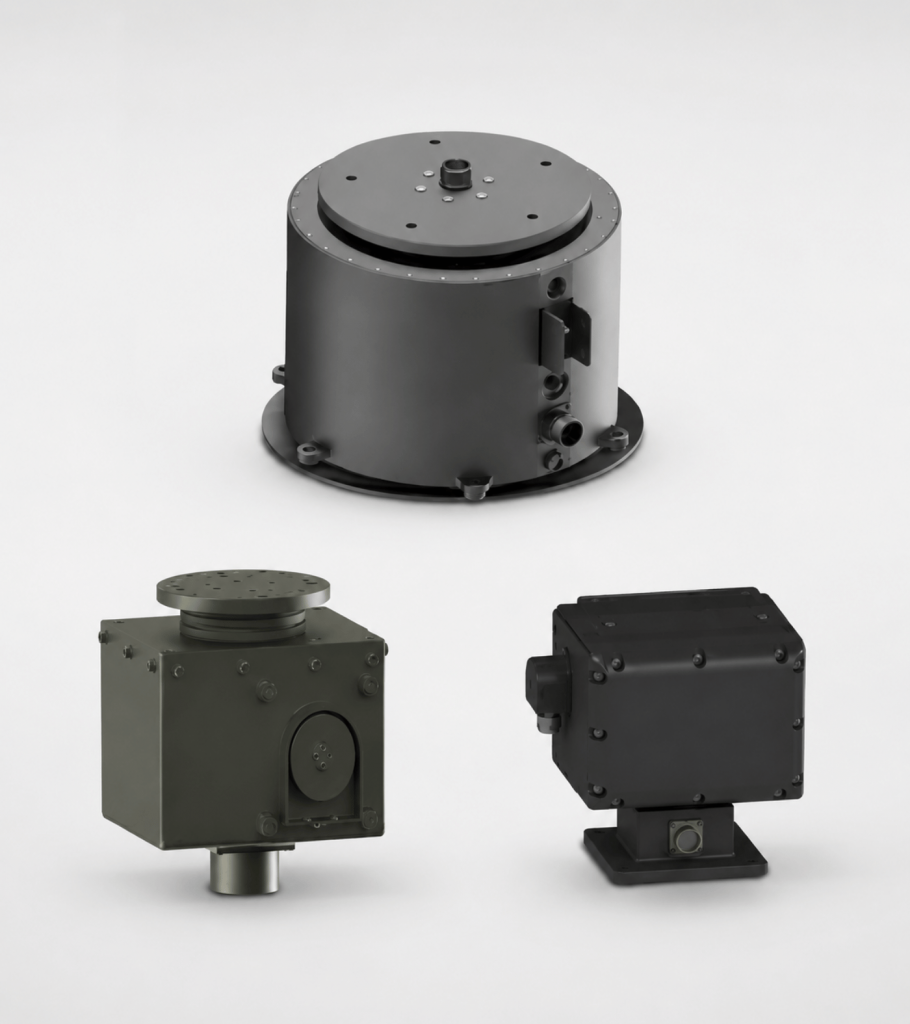

Single Axis Pedestal
- The single Axis Positioner offers partial (sector scan) or continuous operation with slip ring
- Designed for both ground mount and vehicle mount applications.
- Balanced payload up to 100 kg
- Pan speed up to 30 RPM and an angular accuracy better than 0.1°(.01° optional)
- Suitable for radar, drone jammer and communication systems
- Control and manoeuvre through GUI-based application software
- Complete integrated system that delivers high accuracy & resolution
- Operation via Laptop or remote pendant

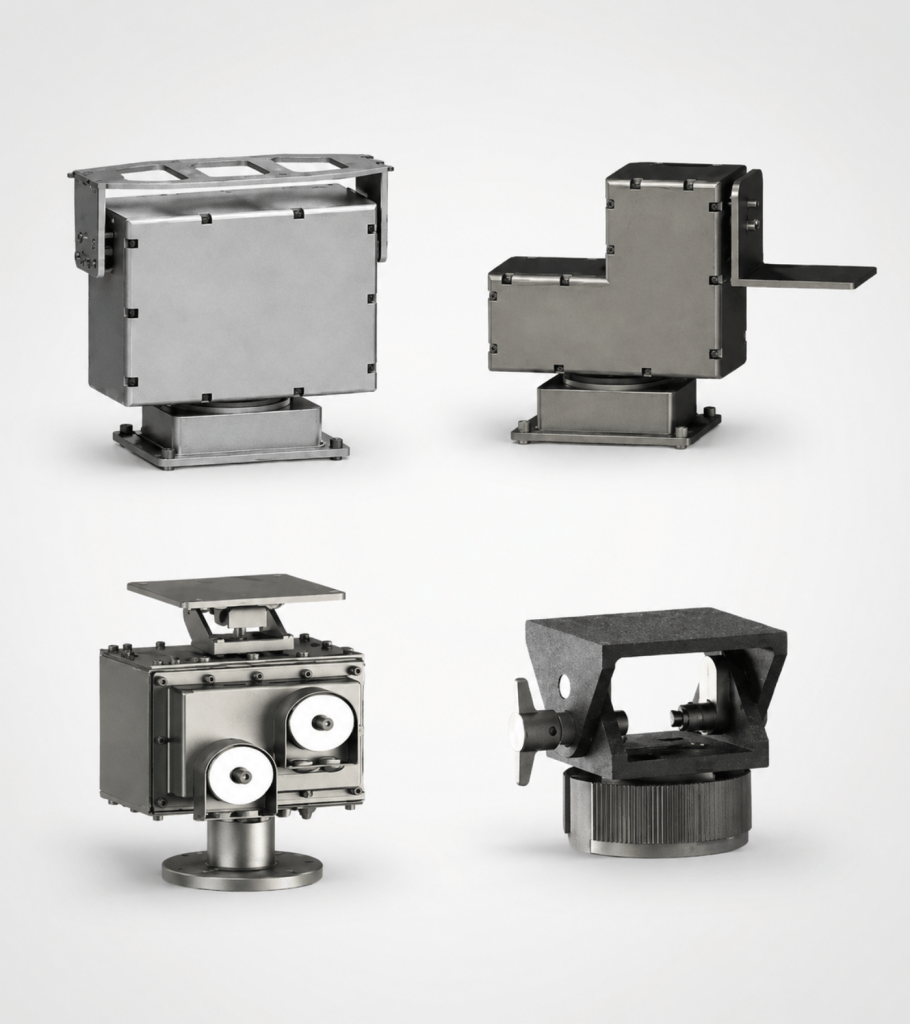

Dual Axis Pedestal
- The Dual Axis Positioners offers alignment in both azimuth and elevation
- Designed for both ground mount and vehicle mount applications
- Designed for balanced payload up to 50 kg
- Pan speed up to 60°/sec and an angular accuracy better than 0.1°(.01° optional)
- Tilt speed up to 30°/sec and an angular accuracy better than 0.1°
- Suitable for radar, drone jammer and communication systems
- Control and manoeuvre through GUI-based application software
- Complete integrated system that delivers high accuracy & resolution
Manual Rotator Tilter
- Simple operation without using any electrical power
- No special tool required for installation on the Mast
- Rope based manual operation from ground
- Pulley for elevation and azimuth drive
- Utilized to install directional antennas in conjuction with ODU
- Automatic locking feature to prevent any backlash
Accessories
Junction Box
Note
- Can be customized for accuracy below 0.1°, against request
- Built-to-specification facility available
- RSSI based automatic alignment and tracking (for Radio Communications)
- Integration of GPS/ GNSS
