- Light Duty Mast
PEL has extensive experience in design and manufacturing of various types of Masts & Tripods suitable for quick deployment of payloads.They provide solutions to a wide and diverse clientele to meet their operational requirements of varying payload, height, mobility, terrain and available infrastructure. Designed as per MIL STD 810.
Telescopic Mast
Tripods
Telescopic Mast
Push-up Drive on Mount Mast
- Guyed / Un-guyed
- Light Weight
- Hand Push-up
- Erected height up to 6 M
- Payload up to 5 Kg
- Weight of Mast 8 Kg
Tripod Push-up / Pneumatic / Hand Winch Mast
- Un guyed
- Hand Push-up/ Pneumatic / Hand Winch
- Erected height up to 6 M
- Payload up to 50 Kg
- Weight of mast <30 Kg
Detachable Section based Mast
- Guyed
- Operated by hand winch (no power required)
- Erected height up to 18 M
- Payload up to 30 Kg
- Packed in soft carrying cases for ease of portability
Tripod Hand Winch / Pneumatic Mast
- Ground mount mast
- Guyed / Un-guyed
- Operated by Hand Winch or Foot pump
- Erected height up to 18 M
- Payload up to 50 Kg
- Weight of mast: < 65 Kg
- Weight of accessories < 40 Kg
- Packed in soft carrying cases for ease of portability
- Winch power unit, Air Compressor (optional)
Ground mount Winch / Pneumatic Mast
- Guyed
- Operated by Hand Winch / Foot pump
- Erected height up to 18 M
- Payload up to 50 Kg
- Weight of mast < 65 Kg
Vehicle mount Winch / Pneumatic Mast
- Guyed / Un-guyed
- Operated by Winch power unit / Air compressor
- Erected height up to 18 M
- Payload up to 50 Kg
Ground mount Winch / Pneumatic Mast
- Guyed
- Winch mast operated by Winch power unit / Pneumatic mast with air compressor
- Erected height up to 25 M
- Payload up to 100 Kg
Vehicle mount Winch / Pneumatic Mast
- Guyed / Un-guyed
- Operated by Winch power unit / Air compressor
- Erected height up to 25 M
- Payload up to 100 Kg
Trailer mount Winch / Pneumatic Mast
- Guyed / Un-guyed
- Operated by Winch power unit / Air compressor
- Erected height up to 18 M
- Payload up to 100 Kg
Hybrid spindle Electro-Mechanical Mast
- Guyed / Un-guyed
- Vehicle mounted mast
- Suitable for Cell-On-Wheels
- Quick deployment
- Remote operation
- Auto stop
- Operated by spindle, gear box & motor
- Erected height up to 10 M
- Payload up to 400 Kg
Spindle based self locking Mast
- Guyed / Un-guyed
- Vehicle mounted mast
- Suitable for Cell-On-Wheels
- Quick deployment
- Remote operation
- Auto stop
- Touch control
- Height display
- Operated by electrical power unit
- Erected height up to 10 M
- Payload up to 150 Kg
Vehicle Mount Rooftop Mast
- Integrated actuator and air compressor
- Wide range of payload capacity up to 35 Kg and height up to 5M above Rooftop
- Easy to operate using Handheld pendant for remote operation
- Easy to install on vehicle rooftop – Modular construction for deployment without any major modification to the vehicle
- Auto cable management during operation
- Integrated Li-ion battery bank to cater power requirement of the system
- Can be operated from shelter using a wired pendant
- Quick deployment
- Suitable for payload such as Lighting, Surveillance camera, communication etc.
Building Rooftop Tripod Mast
- Tripod pneumatic /winch
- Guyed/Un-guyed
- Wide range of payload capacity up to 300 Kg and height up to 7 M above building Rooftop
- Suitable for quick deployment of heavy Payload such as cellular antenna
Tripods

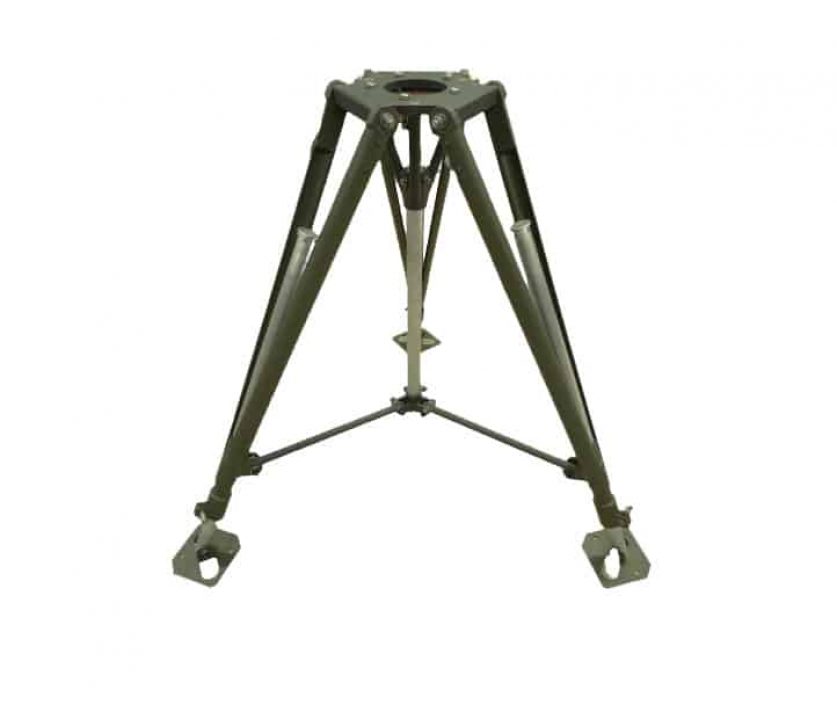

Heavy Duty Tripod
- Tripod weight ~ 25 Kg
- High Torsional rigidity
- Hard anodized tubular construction
- Option for adjustable height for payload deployment
- Man portable packed in Soft Carry case
- Quick deployable
- Adjustable legs for height deployment on uneven ground
- Suitable for mounting Payload Ranging from 100 Kg to 300 Kg
- Strong Tubular Construction
- Min Height 1.1 Mtr
- Max Height 1.5 Mtr
- Max leg Spread Mtr 2.350 Mtr
Medium Duty Tripod
- Light-weight ~ 10 Kg
- Man portable packed in Soft Carry Case
- Easy to deploy
- Hard anodized tubular construction
- Adjustable legs for deployment on uneven ground
- Suitable for mounting Payloads upto 100 kg
- Min Height 1.0 Mtr
- Max Height 1.5 Mtr
- Max Spread 2.420 Mtr
Tripod with Elevator
- Tripod weight ~ 18 Kg
- High Torsional rigidity
- Easy to deploy
- Hard anodized tubular construction
- Man portable packed in Soft Carry case
- Adjustable legs for deployment on uneven ground
- Suitable for mounting Payload Ranging up to 100 Kg
- Optional Rack and Pinion Mechanism (Fine Adjustment up to 18”)
- Min Height 0.85 Mtr
- Max Height 1.8 Mtr
- Max Leg Spread 2.05 Mtr
Ultra Light Duty Tripod
- Very Light in weight ~ 5 Kg
- Man portable packed in Soft Carry Case
- Easy to deploy
- Hard anodized tubular construction
- Erected height 1 to 3 Mtr
- Adjustable legs for deployment on uneven ground
- Suitable for mounting Payload up to 5 Kg
- Strong Tubular construction
