PEL’s Medium Duty Mast addresses the needs of Tactical Elevation for Radio Antenna, Surveillance Systems, Reconnaissance and Illumination. The masts can be elevated by a Foot pump or by Air compressor or Hand winch and supports light, medium and heavy payload. They are easily mountable on ground, vehicular shelters and trailers.
0
+
Types of Medium Duty Mast Developed
0
+
Years of Legacy
0
+
Production Capacity per month
Applications
Electro-Optics
Radio
Communication
SIGINT
C-UAS
OUR USPs
Designed for MIL STDs
Quick Deployment By 2 Person
Possibility for Light
Weight Solution
Capable of Extreme Temperature Operations

- Lightweight construction – tubes in high strength aluminum alloy or composite
- Telescopic mast sections extended by hand-pump, foot-pump or compressor
- Full length key-ways ensure anti-rotation
- Heights up to 25 metres
- Top loads up to 250kg
- Several thousand in-service masts with security customers

Winch Mast (Hand / Electric)
- Lightweight construction – tubes in high strength aluminum alloy or composite
- Telescopic mast sections extended simultaneously by high performance belts
- Full length key-ways ensure anti-rotation
- Heights up to 18 metres
- Top loads up to 100kg
- Hand cranked manual or electrically driven winch
- Several hundred in-service masts with security customers

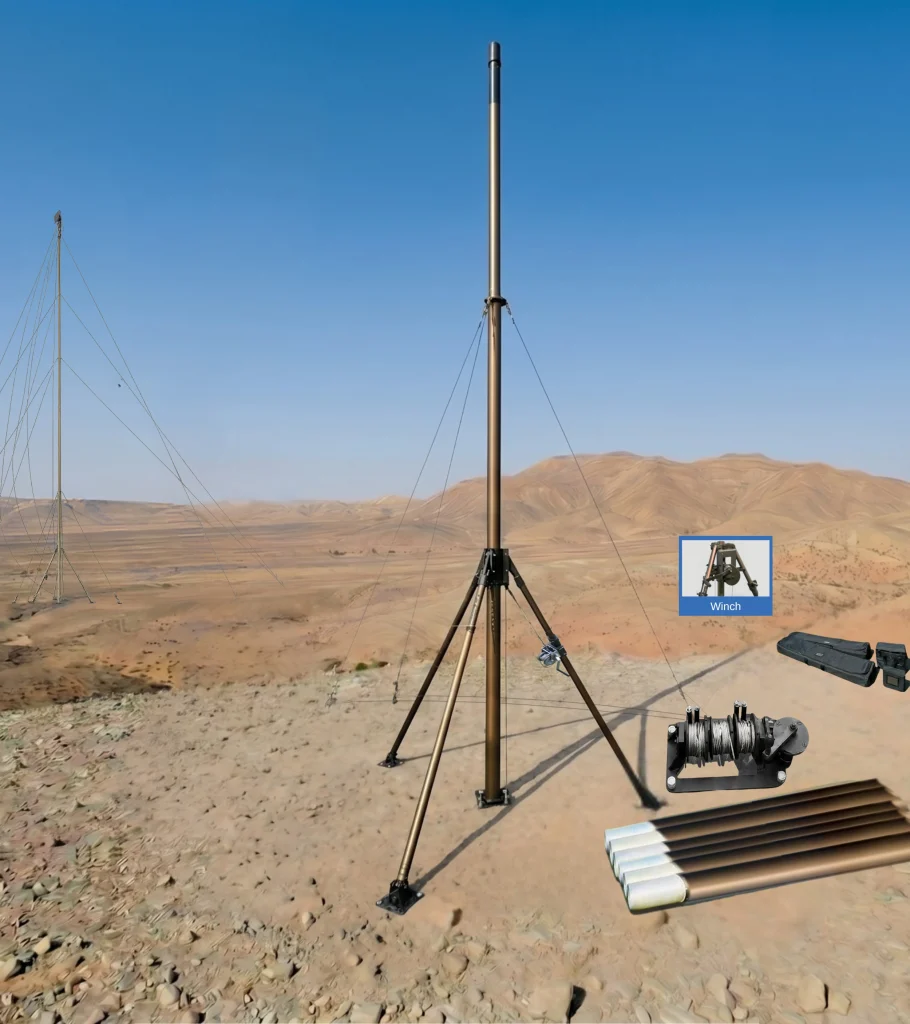

Detachable Section based Mast
- Lightweight construction – tubes in high strength aluminum alloy or composite
- Tripod base with sectional tubes of same height and diameter are pushed-up via hand-winch mechanism
- Built-in anti-rotation
- Heights up to 18 metres
- Top loads up to 50kg
- Hand cranked manual winch
- Guy Rope Controller ensures safe deployment and reduces man-power required
- Integrated spirit level on tripod to enable flatness on uneven ground
