PEL’s Roof Top Mast system has been designed to meet the elevation requirements of smaller payloads such as cameras, radios, illuminating systems and broadcast systems. The roof-mounted system can easily be integrated onto any Sports Utility Vehicle (SUV).
&
PEL’s Building Roof Top Mast system has been designed to meet the requirment of unique solution to deploy complex electronics such as base station RF front end and antenna of DMR/ TETRA/ LoRA/ LTE/ 5G cellular, Anti-Drone and other such systems required to provide communications in dense urban settings or secure critical infrastructure.
0
+
Types of Roof Top Developed
0
+
Years of Legacy
0
+
Production Capacity Per Month
Vehicle Mount Rooftop Mast
- Compact, roof-mount system on vehicle carrier
- Integrated air compressor and Li-Ion battery for mast lift/ retraction and power supply
- Built-in anti-rotation
- Heights from 3 metres to 5 metres above Roof Top
- Top loads up to 50kg
- Handheld Pendant for remote operation of mast and payload Pan / Tilt
Building Rooftop Tripod Mast
- Lightweight construction – tubes in high strength Aluminum Alloy or Composite
- Telescopic mast sections extended by compresso
- Full length key-ways ensure anti-rotation
- Heights up to 10 metres
- Top loads up to 250kg
- Specialized Tripod design for installation on building Rooftops
- Provides very safe approach of lowering payload for Maintenance purposes

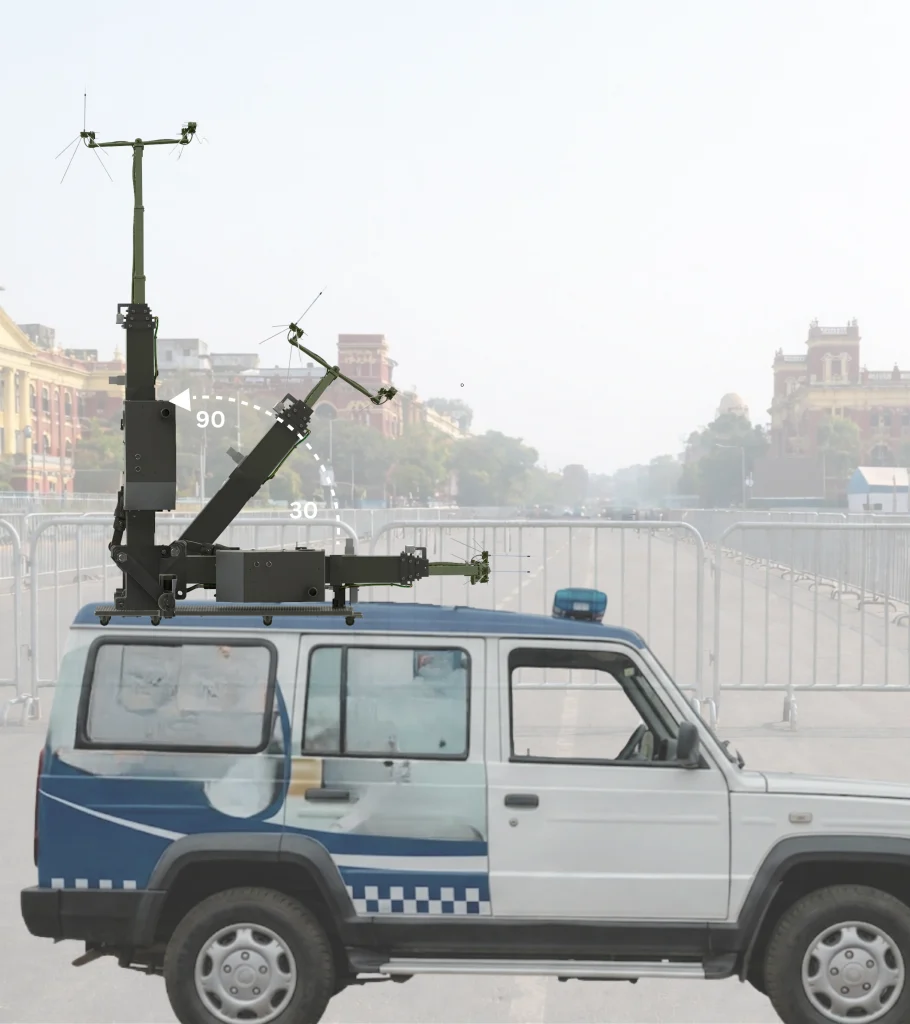

Vehicle Mount Rooftop Mast
- Compact, roof-mount system on vehicle carrier
- Integrated air compressor and Li-Ion battery for mast lift/ retraction and power supply
- Built-in anti-rotation
- Wide range of payload capacity and height options from 3 metres to 5 metres above Roof Top
- Top loads up to 50kg
- Handheld Pendant for remote operation of mast and payload Pan / Tilt
Applications
Electro-Optics
Radio
Communication
Illumination
OUR USPs
Designed for MIL STDs
Suitable for On-the-Quick-Halt
Vehicular Operations
Remote Operation
from Cabin
Quick Deployable

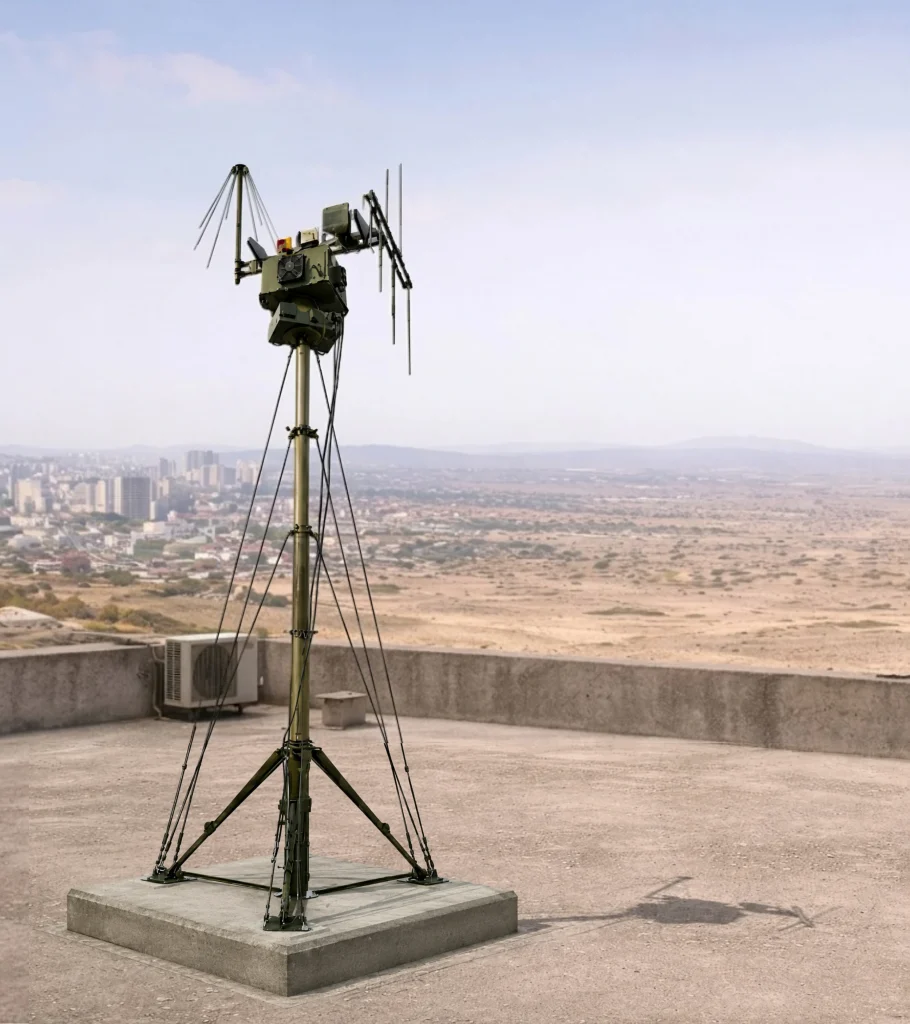

Building Rooftop Tripod Mast
- Lightweight construction – tubes in high strength aluminum alloy or composite
- Telescopic mast sections extended by compressor
- Full length key-ways ensure anti-rotation
- Heights up to 10 metres
- Top loads up to 250kg
- Specialized Tripod design for installation on building rooftops
- Provides very safe approach of lowering payload for maintenance purposes
- Can be fixed on concreate plinth
- Provision of putting dead weight (Sand bag) on its base for temporary deployment
Applications
Radio
Communication
SIGINT
Radar
Telecom 4G 5G Cellullar
OUR USPs
Designed for MIL STDs
Technician Friendly and Safe
Possibility for Light
Weight Solution
High Stability and Rigidity for
Mission Critical Applications

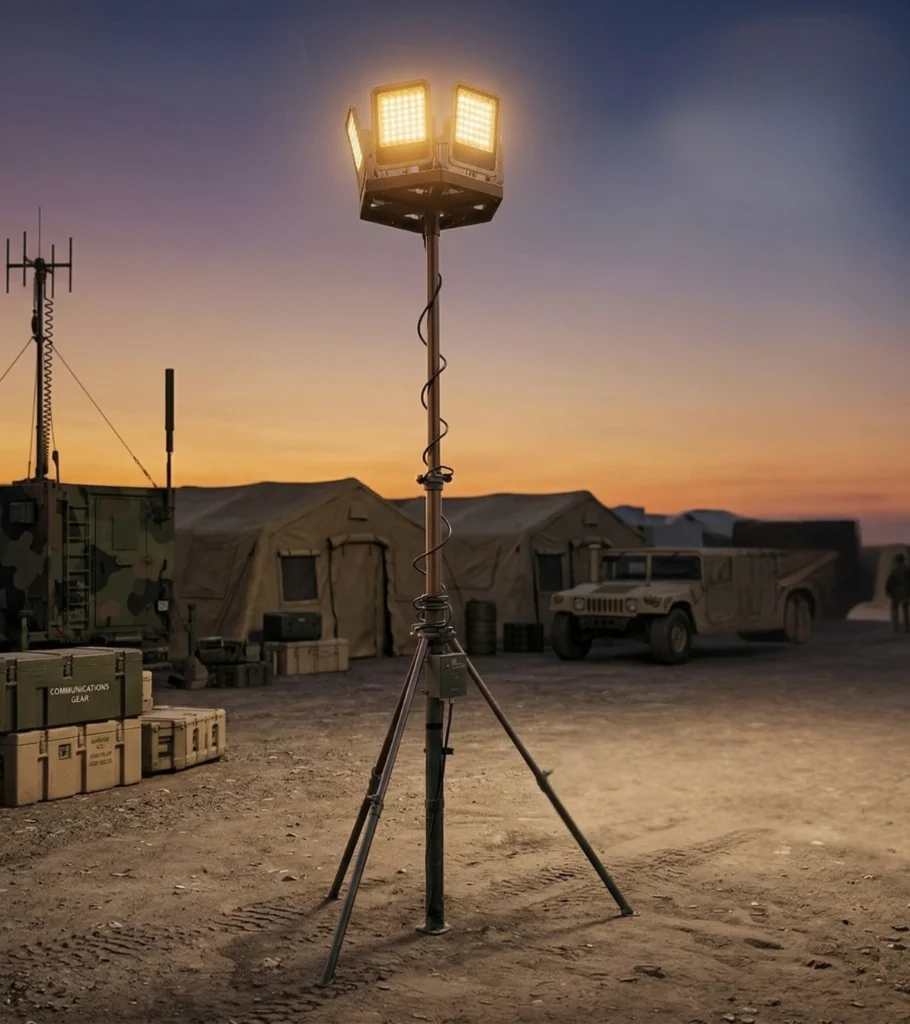

Tactical Lighting System
- Quick & simple installation of tripod mast light fixture
- The tripod has adjustable legs which help to erect the mast on uneven ground
- The mast and tripod are made of lightweight aluminium alloy tubes, enables frequent erections and retractions without damage
- Option for remote switch ON and OFF from mobile phone
- Additional safety by using additional weights at high wind speed
- Surge protection for incoming power supply
- Each light is connected to junction box with quick latch plug and can be replaced if required
OUR USPs
Designed and Qualified for MIL STD
Suitable for On-the-Quick-Halt vehicular operations
Maintenance Free for
800 Lifts / 2 Years Operation
High Stability and Rigidity for Mission Critical Applications
Remote Operation Using Mobile Phone
High Frequency Direction Finding Antenna
- HF DF antennas offer high direction accuracy.
- Frequency Range of antenna from 0.5 to 30 MHz.
- Protection against lightning strikes.
- Suitable for ground waves and low-angle sky waves.
- Omni directional Coverage at 360°
- Quick to deploy; Standalone deployment
- Ruggedised & Weatherized construction
- High performance, 7 set of antenna array
